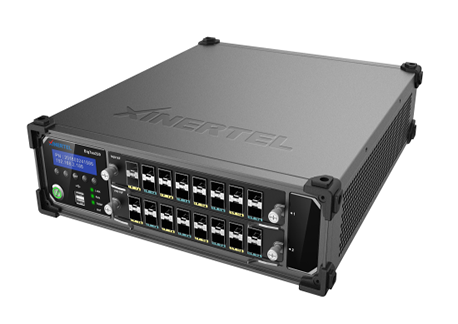

BigTao220 portable chassis is a new generation R&D test chassis with Xinertel global leading architecture. It adopts a modular design and provides 2 slots, supporting any combination of test modules from 10M to 100G speeds. It is also the smallest chassis that supports Xinertel new 100G multi-speed card (10G/25G/40G/100G).
BigTao220 portable chassis is a new generation R&D test chassis with Xinertel global leading architecture. It adopts a modular design and provides 2 slots, supporting any combination of test modules from 10M to 100G speeds. It is also the smallest chassis that supports Xinertel new 100G multi-speed card (10G/25G/40G/100G)
BigTao220 has a compact frame and a portable handle on the side, which greatly meets the needs of field testing. At the same time, using professional noise reduction technology, the maximum operating noise is only 65 dB, which can be tested in the office. The design uses the latest energy-saving technology, green and environmental protection, the maximum power consumption of the whole machine is only 150W, which can effectively reduce the cost of long-term network testing.
In conjunction with Xinertel new generation of PCT-based test software Renix and V series test modules, BigTao220 can achieve Layer2-3 traffic testing and protocol simulation for network equipment and network systems, providing comprehensive testing in terms of function, performance and security. Solutions to meet testing needs during R & D, experimentation and quality control.
Key Features
· Support 100G, 40G, 25,10G and 10/100/1000Mbps
· Chassis has strong portability, low power consumption and low noise
· Support multiple management IP modification methods
· Support local software download based on Web browser
· Support network sharing and remote control to improve test efficiency
· Support Chinese and English software platform and test report
· Provide Renix API interface, support TCL and python automation testing
Specification list
| Slots | 2 |
| Size | 400mm×340mm×95mm |
| Weight | Empty chassis: about 6.6kg Full board card: about 9.2kg |
| Maximum power supply capacity of the system | 200W |
| Indicators and Controls | · Rear AC power switch · Power, Fan, Temp, Link LED indicator, 16 * 02 character LCD · Chassis master reset button · Chassis LCD control buttons |
| Connectors | · 1 DB15 display interface · 1 RJ45 10/100 / 1000M management interface · 1 RJ45 10/100 / 1000M 1588 clock input interface · 1 RJ45 RS232 serial port · 1 SYNC-OUT, 1 SYNC-IN chassis cascade interface · 1 DB9 GPS RS232 serial port · 1 1PPS, 1 10MHz input BNC · 1 IRIG-B DC TTL input BNC · 2 USB Type A ports |
| Temperature | Work: 0ºC to 35ºC Storage: -40° C to 70° C |
| Humidity | Work: 20% to 85% RH, no condensation Storage: 20% to 85% RH |
| Power | One 110VAC / 220VAC 50 / 60Hz @ 3A single-phase power input |
| Noise | ≤ 65dba |
| Operating System | CentOS7.X, 64bit |
| Administration and Operation | · IPv4 Management Network · Support panel keys to modify IP address and query status · Support Telnet / SSH terminal to modify IP and query status · Support external display and keyboard to modify IP and query status · Support webpage download client, modify IP, query status · Supports license management and hardware management through client software |
| Client software | Renix test application: For control and data plane performance testing of routers and switches with complex protocol support including BGP, OSPF, IS-IS, MPLS, IP multicast, including IPv4 and IPv6 variations and many more protocols |
| Client system requirements | System: Microsoft Windows 7/Windows 10/Windows Server 2012 R2 Standard Edition CPU: i3-6100 CPU @ 3.70GHz and above Memory: 4 GB and above |
| Board support | · V6000 series Gigabit functional test module (10M/100M/1000M) · V8000 series 10G functional test module (1G/10G) · V2-10G series 10G multi-speed functional test module (100M/ 1G/2.5G/5G/10G) · V2-100G series 100G multi-speed functional test module (10G/25G/40G/100G) |
