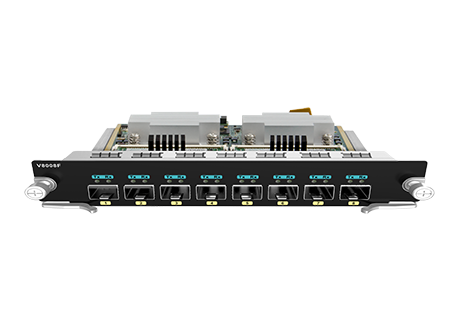

The V8000 series test module is a new generation test board with a world-leading architecture. It can meet the needs of equipment manufacturers from basic functional test, compliance test and high-density port performance test requirements.
The V8000 series test module is a new generation test board with a world-leading architecture. It can meet the needs of equipment manufacturers from basic functional test, compliance test and high-density port performance test requirements. At the same time, it can verify whether the network system can achieve the expected goals when deploying network solutions in enterprises, operators and data centers.
Key Features
· Support 10G SFP+(optical interface)
· Support 10G RJ45 (electrical interface)
· Support L2-3 traffic test and protocol simulation
· 100% line-rate traffic generation, statistics and capture based on FPGA
· Supports RFC2544, RFC2889, RFC3918 and other benchmark test suites
· Support Chinese and English test software
· Support Chinese and English test software
Specification list
| Hardware and electrical characteristics | |
| Port Speed | Copper cable media :10G;fiber cable media:1G, 10G |
| Number of Ports | 8 ports per card(MAX) |
| Interface Standard | 1000MBASE-SX/LX,10GBASE-SR/SW,10GBASE-LR/LW,10GBASE-T |
| Port Reservation | Occupied by single port |
| Rate switching | self-adaption |
| Module weight (kg) | 1.2 |
| Module size (width * height * depth) | 196mm x 35.5mm x 271mm |
| Range of working Temperature | 0° C to 35° C |
| Range of Working humidity | 20% to 85% |
| Maximum power consumption (watts) | 29W |
| Traffic statistics | |
| Stream Per Port | 1024 |
| Statistical Mode | Statistics results can be displayed in the form of data table and graph. Statistics can also save Excel files automatically. |
| Statistics item (port) | Number of transmitted / received frames, transmitted / received frame rate, received bandwidth, Rx Filter Frames and custom statistics, FCS error statistics, TCP / UDP Checksum error, Rx Pause Frames, Port Average Latency Statistic, etc. |
| Statistics Item (stream) | Number of transmitted/received frames, transmitted / received frame rate, received bandwidth , error frame statistics, real-time packet loss statistics, out-of-order statistics, latency jitter, and custom statistics, etc. |
| Statistical Operation | Support sorting statistical results, performing mathematical operations such as addition, subtraction, multiplication, division, and custom paging statistics, etc. |
| Traffic Capture | |
| Capture Buffer/port(bytes) | 1024M |
| Capture Type | Capture data and control plane receive frames Capture the transmit and receive frames of the control plane Frame capture based on filter template Frame capture based on error packet Support wrap capture Support to specify the number of download capture packets |
| Protocol Simulation | |
| Routing | RIPv1v2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP, BGP4+ , LDP, MPLS L3VPN, VPLS, VLL, 6VPE, 6PE |
| Access | PPPoE Client/Server, DHCPv4 Client/Server, DHCPv6 Client/Server, DHCPv6 PD Client/Server, L2TPv2,802.1x |
| Multicast | IGMPv1/v2/v3, MLDv1/v2, IGMP/MLD Querier, PIM-SM |
| Data Center | VXLAN, OpenFlow, OVSDB, EVPN, LACP |
| Other | Automatic configuration of BFD, 802.1ag, 802.3ah and IPv6 |
| Test Suite | RFC2544, RFC2889, RFC3918, Asymmetric Testing, Intelligent Script |
| Software Platform | |
| Client Software | Renix test platform: Support layer 2-3 traffic test and protocol simulation |
| API Secondary Development | TCL, Python3.x, GUIToTCL, GUIToPython |
| GUI Language | English, Simplified Chinese |
| Hardware Platform | |
| Chassis | BigTao220, BigTao6200 |
| Chassis OS | Linux CentOS7.X |
