Targeting testing scenarios such as communication network construction and operation, equipment R&D and certification, education and scientific research.

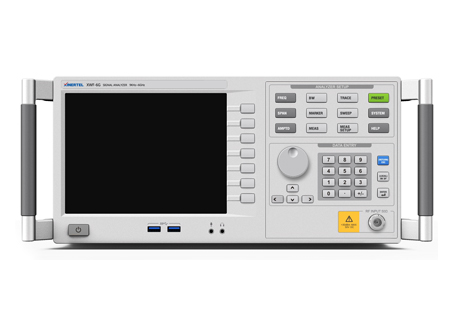

The XWF-6G/8G signal analyzer is a basic experimental and R&D tool launched by Xinertel for deep analysis of electrical signals. This series of signal analyzers provides spectrum, time domain, and modulation analysis, and is widely used in wireless communication, scientific research, education, and other fields. It can accurately measure parameters such as signal frequency, power, and modulation quality, and assist in system optimization and debugging. It leads the way in meeting the requirements of 3G/4G/5G vector signal analysis, especially in the field of 5G demodulation, through technologies such as low phase noise frequency synthesis, fast frequency sweeping, and vector demodulation.
Key Feature
■ Comprehensive functionality
• High precision spectrum analysis: With a wide frequency range and support for up to 8GHz, it also has high resolution and dynamic range, enabling accurate measurement of various characteristics of signals in the frequency domain. Among domestic RF instruments, it is the first to support 5G NR and NB IoT standards, and its amplitude accuracy and frequency response performance indicators are industry-leading.
• Multidimensional measurement: not only supports spectrum measurement, time-domain measurement, power measurement, and measurement according to defined templates, but also supports functions such as adjacent channel power suppression ratio measurement and peak to average ratio measurement.
• Featured features: Supports vector signal analysis functions such as EVM, phase error, frequency error, IQ offset for delay measurement, 1024QAM high-order demodulation for automatic detection of cell IDs, SSB frequency domain position automatic search, multi carrier bandwidth setting, MIMO measurement, etc., to meet the requirements of complex application scenarios.
■ Easy to Use
• Portable design: Adopting lightweight and compact design, the internal components are highly integrated, reducing both volume and weight while ensuring the stability and durability of the instrument.
• User friendly interface: adopting an intuitive and easy-to-use graphical operation interface, simplifying the measurement setting process, supporting one click measurement and fast sweeping functions.
• High automated: equipped with automatic testing sequences, intelligent recognition of signal types, and automatic calibration functions, significantly improving testing efficiency.
• Remote control and data export: Supports LAN interface for remote control, and can easily export test results and generate reports.
■ High Quality Service
• Comprehensive technical support: providing detailed user manuals, online help resources, and technical training to ensure that users can proficiently master instrument operation.
• Regular Upgrades and Maintenance: Continuously providing update services, firmware versions can be upgraded with just one click to ensure that instrument functions keep up with the times. At the same time, professional calibration and maintenance services are provided to ensure the long-term stability and accuracy of the instrument.
■ Widely Applicable
• Communication network construction and operation: widely used in the planning, construction, and daily operation of communication networks, including base station transmission power, coverage effect, interference source positioning, etc.
• Equipment R&D and certification: During the development, production, and certification stages of wireless communication devices, it is used to ensure the quality and compliance of the signals transmitted by the devices.
• Education and research: Serving the measurement and analysis of signal characteristics in research institutions such as universities and research institutes, it can be applied in teaching demonstrations, research project experiments, and new technology explorations.
