Targeting testing scenarios in research and development, production, maintenance, science and education, and other related fields.

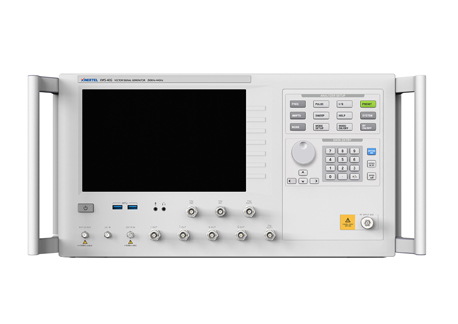

The XWS-40G millimeter wave vector signal generator is a high-end vector signal generator launched by Xinertel. Its frequency range covers 250KHz~44GHz, and the signal bandwidth supports 800MHz. It has comprehensive functions and flexible configuration, and can meet the testing needs of research and development, production, maintenance, science and education, and other related fields.
Key Feature
• The frequency band covers 250KMHz~44GHz
• Output power at 1GHz -120dBm to+15dBm
• Support pulse modulation function
• 800MHz RF modulation bandwidth
• Support the generation and import of 3G/4G/5G vector signals
• Support ALC shutdown power maintenance function (ALC shutdown function may be used in special circumstances, and power accuracy may decrease)
• 4G bytes waveform playback memory
• Supports real-time waveform generation at speeds up to 491.52M
• Output signal switching speed, single tone frequency switching speed less than 100ms, amplitude switching speed less than 50ms, RF ON/OFF switch speed less than 50ms
• Supports vector signal modulation for UMTS, LTE, NB-IOT, 5GNR, and 5GNR CPE. At 1G frequency, LTE 64QAM modulation EVM is less than 0.5%
• Vector modulation standard LTE FDD, modulation method 64 QAM, frequency range 1800M~2200M, output power<7dBm, error vector amplitude EVM typical value 0.7, guaranteed value<1.2
• UMTS supports peak shaving and adjustable peak to average ratio
• Support pulse modulation function, adjustable duty cycle
