XWU-S100/S200 is a 5G network high-capacity terminal testing solution launched by Xinertel.

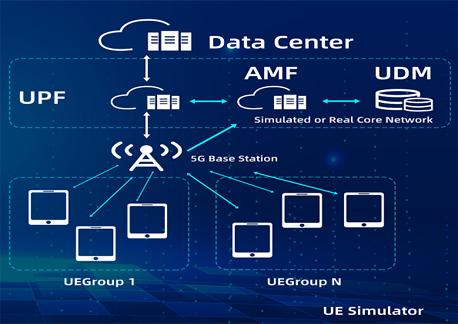

XWU-S100/S200 can support various testing scenarios for 5G wireless access networks. By simulating tens of thousands of terminals accessing multiple cells, the 5G base station and core network are tested for function, capacity, pressure and security. It supports voice and data services and various mobile models that simulate mobile Internet, supports flexible configuration of networking, specifications and user business behaviors, and can provide unique, cost-effective solutions for different business needs.
Key Feature
• Technical advantages: With completely independent intellectual property rights, based on industry standard server hardware, independently developed high-capacity terminal high-level and baseband protocols, business tools and operation maintenance software systems, as well as universal RF units. Can completely replace imported high-capacity instruments. Relying on independent technological innovation to achieve localization of 5G high-capacity terminal instruments, solving the bottleneck problem of 5G high-capacity terminal instruments relying heavily on foreign products.
• Complete scenarios: It can be applied to the main business scenarios of 5G network equipment research and testing, covering high-capacity performance and basic protocol functions, as well as product security testing. The main application scenarios include gNB and 5GC high-capacity system performance testing, protocol function system testing, domain requirement development verification, operator bidding, exhibition hall testing, testing certification, and product security. Specific testing scenarios are as follow.
1. 5G SA FR1 testing
2. FR2, NRDC, and NRCA testing
3. U6G testing
4. Multi UE protocol function testing
5. Multi UE capacity performance testing
6. Multi community testing
7. Caps impact testing
8. Multi type business testing
9. Business stress testing
10. Macro base station and small base station testing
11. Security testing
12. Interoperability and consistency testing
13. MIMO testing
14. 5G private network testing
• Rich functionality: It can provide terminal capabilities that comply with 5G standard protocols, testing capabilities that simulate actual network user behavior, and continuous evolution capabilities towards subsequent protocols such as 5G-A. At the same time, customized development of related functions and testing solutions can be provided according to customer needs.
1. Protocol processing supports the basic functions of 3GPP R15/R16/R17 protocol stack (NAS/RNC/SDAP/PDCP/RLC/MAC/PHY)
2. Real time services support Internet SIP/RTP/RTSP/FTP/HTTP/TCP/UDP/IP/ICMP common protocol functions
3. Support wireless features such as UE near, medium, and far point distribution, extended coverage, and fast channel fading
4. Support complex application scenarios such as super cells, RedCap, and carrier aggregation
5. Support common physical layer feature functions (DSS, NI scrambling, DMRS flower arrangement, FDMON, MU-MIMO, etc.)
6. Support NAS/RNC/PDCP protocol security and DDOS distributed denial of service attack testing functionality
• Efficient operation and maintenance: Provides flexible configuration methods that are compatible with both visualization and scripting, rich maintenance data and analysis capabilities, and accelerates test result evaluation and problem localization. A localized R&D and after-sales service team can efficiently support and quickly respond to testing demands, providing various technical services.
1. Human computer interaction full graphical operation interface
2. Multi dimensional management of configuration data
3. Flexible control of user distribution and business behavior
4. Complete hierarchical dimensional measurement data
5. Comprehensive system operation status monitoring and diagnosis
6. Rich statistical data logs
7. Stable automation capability and API interface
8. Complete user operation manual
