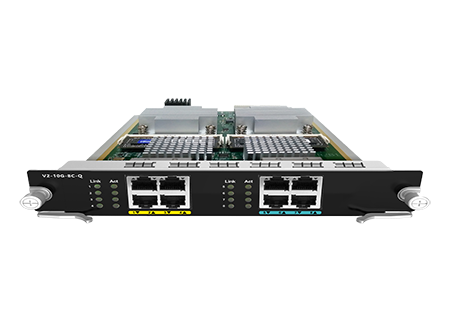

P8000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability. P8000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing
The V2-10G series test module cooperates with Xinertel's new-generation test software Renix based on the PCT architecture to provide a complete test solution for Layer2-3. Each port of the V2-10G series test module supports wire-speed traffic generation and analysis, high-performance routing/ multicast/user access emulation, and so on.
Key Features
· Support 10G/5G/2.5G/1G/100M five speeds
· Support 2-3 layer stream test and protocol simulation
· FPGA-based 100% line rate traffic generation, statistics and capture
· Supports RFC2544, RFC2889 and RFC3918 benchmark test suites
· Support Chinese and English test operation software
· Support Chinese and English test report system
Specification list
| Hardware and electrical characteristics | |
| Port rate | Electrical port: 10G/5G/2.5G/1G/100M (full duplex) |
| Port density | Up to 8 interfaces per slot |
| Interface standard | 100BASE-T, 1000BASE-T,2.5GBASE-T, 5GBASE-T, 10GBASE-T, 802.3 bz, NBASE-T, MGBASE-T |
| Port occupation | Occupied by single port |
| Rate switching | self-adaption |
| Module weight (kg) | 1.1 |
| Module size (width* height * depth) | 196mm x 35.5mm x 271mm |
| Range of working temperature | 0° C to 35° C |
| Working relative humidity | 20% to 85% |
| Maximum power consumption | 41 watts |
| Traffic Generation | |
| Stream per port | 256 |
| Frame length (bytes) | 60-16383 |
| Frame length type | Support fixed, increasing, decreasing, random, automatic, IMIX and other frame length types |
| Jump | Each stream supports 4 jump fields Support fixed, increasing, decreasing, list and random jump modes |
| Send mode | Port-based continuous transmission, burst and time burst Stream-based continuous transmission and burst |
| Speed mode | base on port , base on stream |
| Latency and jitter settings | Supports four latency test modes: LIFO (store and forward), FIFO (through-exchange), LILO, and FILO |
| Frame timestamp resolution | 8 nanoseconds |
| Built-in message template | A variety of newspaper templates are built in, such as VLAN, ICMP, PPPoE, GRE, DHCP, L2TP, IPv6, MPLS, GTP, GOOSE, VXLAN,OSPF,TCP,UDP... |
| Custom message | Support custom messages, and edited message templates can be saved; support checksum check of custom segments |
| User-defined data | Supports 16K bytes of user-defined message import, where the first 256 bytes support configuration jumps |
| Error frame | CRC error, undersize frame, oversize frame; |
| Flow Control | Full duplex flow control |
| Traffic Statistics | |
| Stream per port | 1024 |
| Statistical mode | Table statistics, chart statistics, automatically save EXCEL files |
| Statistics item (port) | Number of sent / received frames, sent / received frame rate, received bandwidth, errored frame statistics, filtering statistics and custom statistics, FCS error statistics, TCP / UDP Checksum errors, Pause frame statistics, average delay statistics |
| Statistics item (stream) | Send / receive frame number, send / receive stream rate, receive bandwidth, error frame statistics, real- time packet loss statistics, out-of-order statistics, delay jitter, and custom statistics |
| Statistical operation | Supports sorting statistical results, performing mathematical operations such as addition, subtraction, multiplication and division, and custom paging statistics |
| Traffic Capture | |
| Capture space/port (bytes) | 1024M |
| Capture type | Capture data and control plane receive frames Capture the transmit and receive frames of the control plane Frame capture based on filtering template Frame capture based on error message Support cyclic capture Support to specify the number of captured capture packets |
| Protocol Simulation | |
| Routing | RIPv1v2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP, BGP4+ , LDP, MPLS L3VPN, VPLS, VLL, 6VPE, 6PE |
| Access | PPPoE Client/Server, DHCPv4 Client/Server, DHCPv6 Client/Server, DHCPv6 PD Client/Server, L2TPv2, 802.1x |
| Multicast | IGMPv1/v2/v3, MLDv1/v2, IGMP/MLD Querier, PIM-SM |
| Data Center | VXLAN, OpenFlow, OVSDB, EVPN, LACP |
| Other | Automatic configuration of BFD, 802.1ag, 802.3ah and IPv6 |
| Test suite | RFC2544, RFC2889, RFC3918, Asymmetric Testing, Intelligent Script |
| Software Platform | |
| Client software | Renix test platform: 2~3 layer stream test and protocol simulation |
| API secondary development | TCL,Python3.x,GUIToTCL,GUIToPython |
| Interface language | English,Simplified Chinese |
| Hardware platform | |
| Adapter chassis | BigTao220,BigTao6200 |
| Chassis operating system | Linux CentOS7.X |
