Nowadays, AIGC is developing rapidly, and the scale of AI model parameters is constantly expanding, which puts forward higher requirements on computing power and network. As the underlying communication connection base,, the Intelligent Computing Center(ICC) Network needs to have the communication capability of large bandwidth, low latency and high stability . Lossless network is one of the key technologies in the industry to build ICC. As a high-throughput and low-latency network solution, Lossless Ethernet has a wide range of application prospects in HPC and AI. RoCE v2 is the key protocol to implement Lossless Ethernet, and 100G and 400G are the mainstream interface standards for Lossless Ethernet and data centers.
In response to the testing requirement of RoCE v2, 100G and 400G, as a professional network test solution provider in China, Xinertel launched its latest testing products and solutions: X2-100G high-density test module and X5-400G high-density test appliance, both of which are completely self-developed high-performance network test tools.

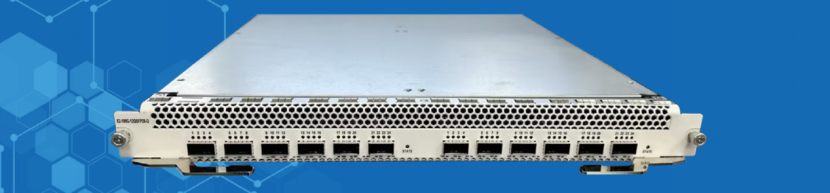

X2-100G high-density test module is one of the most advanced network test tools on the market, designed to meet the high-speed network test. It not only supports 12 100Gbps test ports, but also has the industry's best L2-3 traffic generation and analysis capabilities, and supports RoCE testing and large-scale routing and switch protocols and traffic simulation, benchmark testing (e.g., RFC2544/RFC2889/RFC3918), function testing, performance testing, long-term stability and reliability testing.
[Key features]
◆Native QSFP28 100G interface, support 12 x 100G L2-3 test ports, or support 6 100GRoCE test ports
◆Support the generation and transmission of RoCEv2 traffic
◆Support QOS settings for L2 (VLAN) and L3 (DSCP)
◆Support ECN/PFC enabling and priority setting
◆Supports thousands of QPs per port, supports traffic endpoint selection based on QPs
◆Frame lengths: 64 to 16,383 bytes
◆Time stamp resolution: 2.5ns
◆Support high performance test of routing, multicast, access, MPLS, VxLAN, and segment routing (SR) protocols
◆FPGA based 100% line speed traffic generation, statistics and capture
◆Support benchmark test suites such as RFC2544, RFC2889, RFC3918
◆Support Chinese and English GUI and test reports

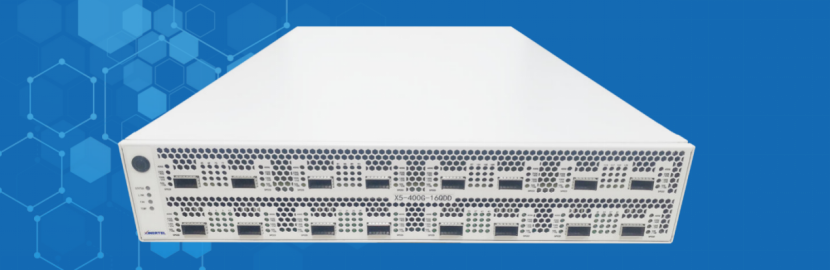

X5-400G high-density 400G test appliance is another product lanched by Xinertel which adopts an integrated test chassis and is mainly oriented to the testing of high-end routers, high-end switches, and data center switch equipment. It is available in two different models with 8 400G ports and 16 400G ports, which can help carriers, network equipment manufacturers and enterprise users to test different scenarios more flexibly.
[Key features]
◆Native QSFP-DD 400G interface, support 8/16 400G ports, and 400G/200G/100G
◆Support large-scale 2-3 layer traffic and routing switching protocol simulation
◆Frame lengths: 64~16004 bytes
◆Time stamp resolution: 2.5ns
◆Support high performance test of routing, multicast, access, MPLS, VxLAN, and segment routing (SR) protocols
◆FPGA based 100% line speed traffic generation, statistics and capture
◆Support benchmark test suites such as RFC2544, RFC2889, RFC3918
◆Support Chinese and English GUI and test reports.
The 100G high-density test module and X5-400G high-density test applianc from Xinertel are your right-hand man in the process of network equipment R&D and network operation and maintenance. Their launch not only represents the progress of our technology, but also a big step forward for domestic network technology. We firmly believe that through continuous innovation and progress, domestic technology can better serve the domestic and oversea markets and jointly promote the development of global network technology.
Please contact us for more product information and become a witness of domestic network technology innovation! We look forward to working with you to create brilliance together.
